2008 shifter in 2002 truck and more conversion pictures

Added some more finishing touches to the auto-to-manual-conversion:
My truck is now sporting a 2008 shift lever and shifter boot along with a 2008 carpet for manual transmission:

Here are a few more pictures of my conversion:

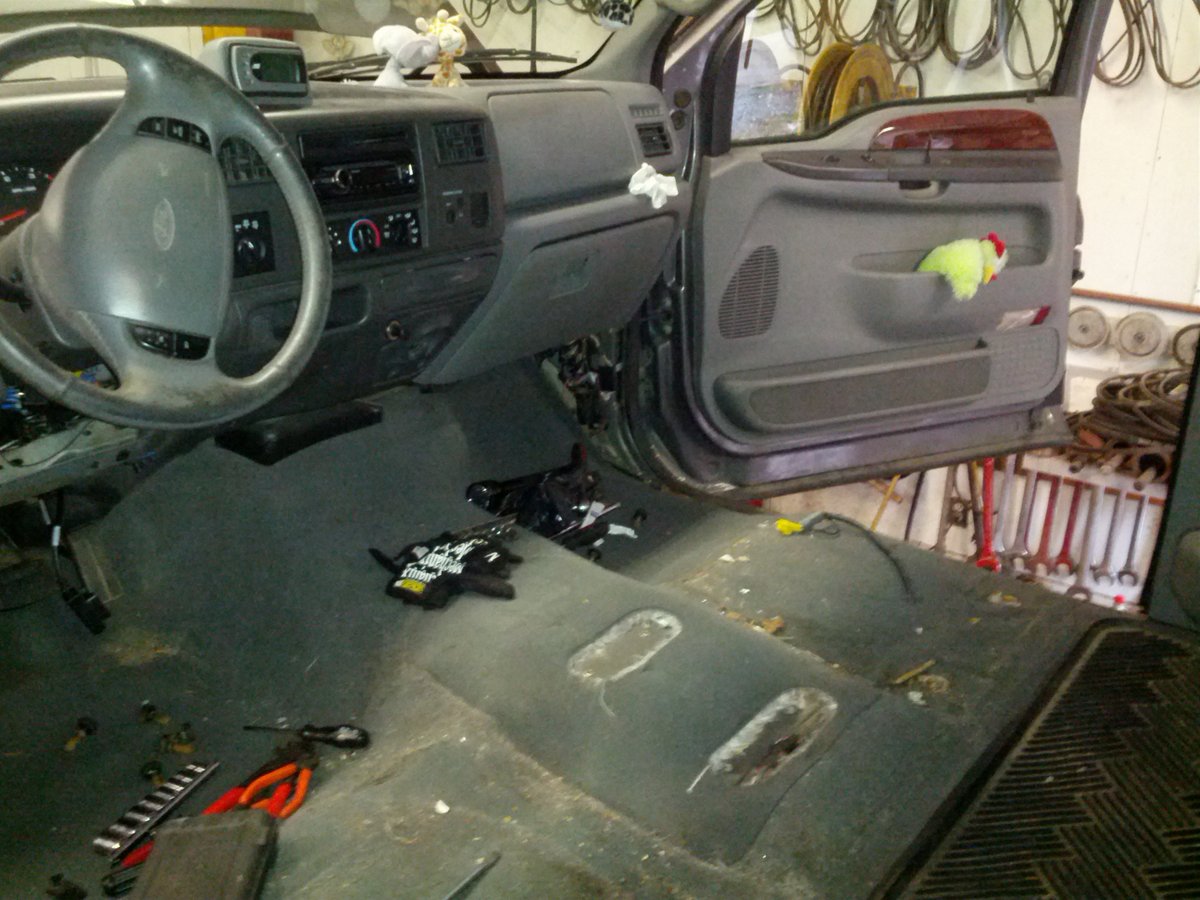

Interior removed:

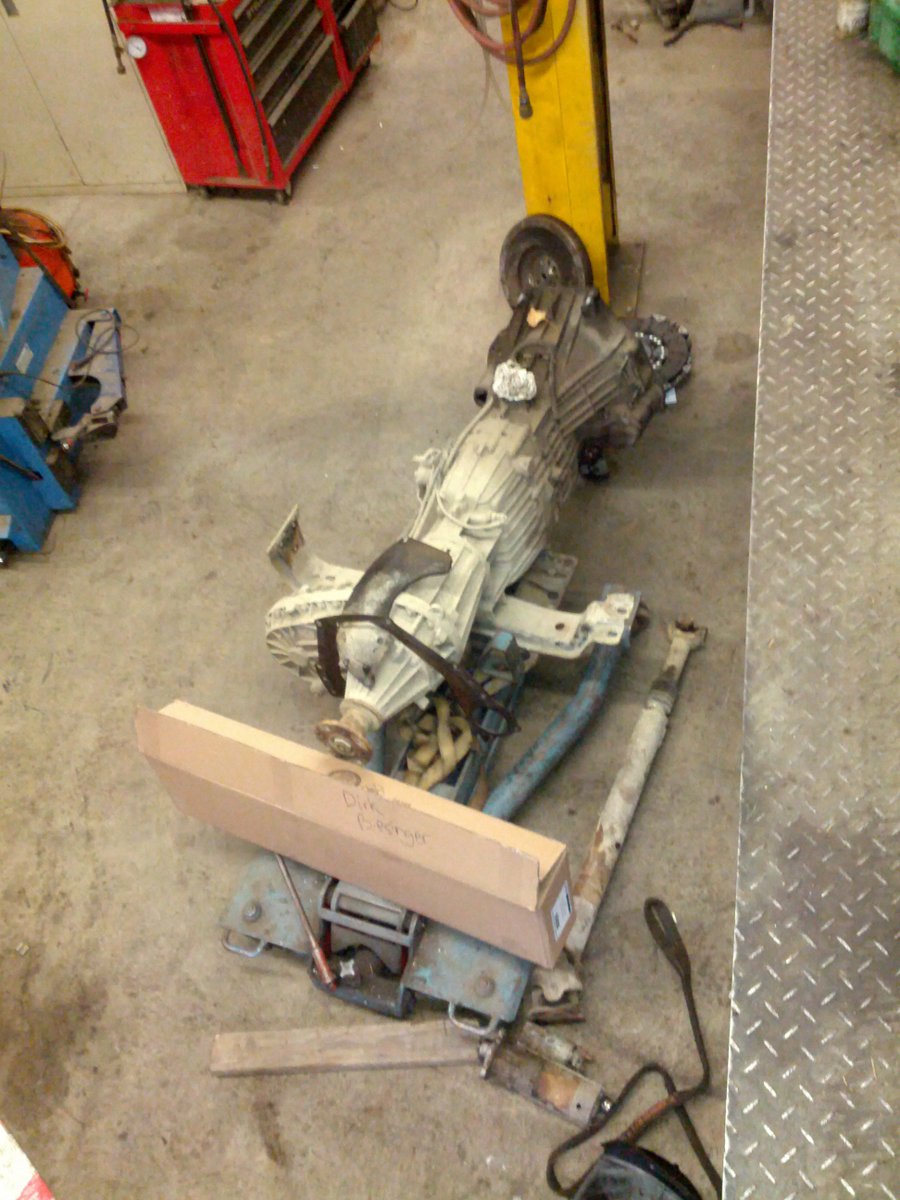

The manual transmission and T-case sitting on the floor:

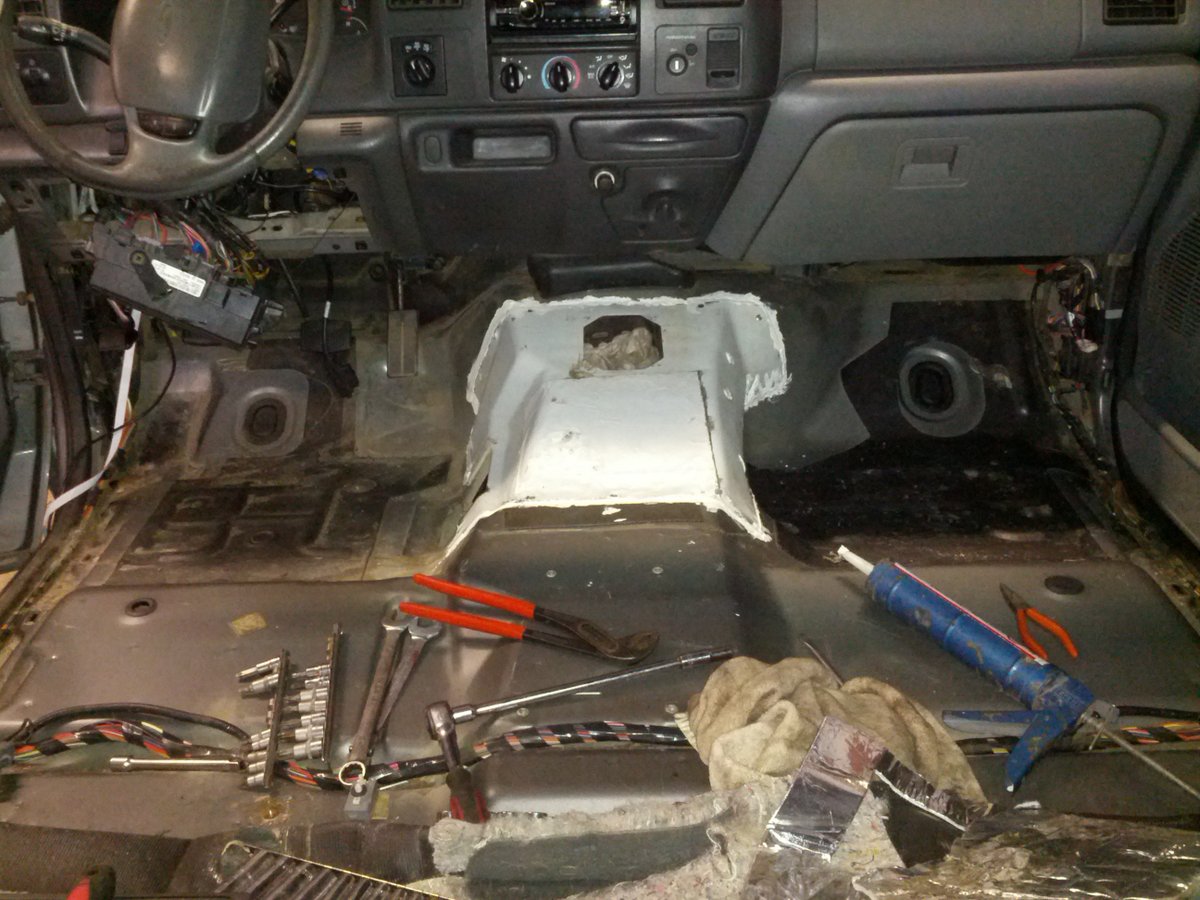

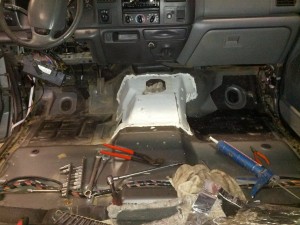

Manual “hump” in place:
Changing shift lever to 2008: the retainer housing for the lower lever is different between the 7.3l powerstrokes and the 6.4l; I used all parts of the 2008 but the retainer housing. I re-used the one I had for the 2002 installation. Works like a charm.

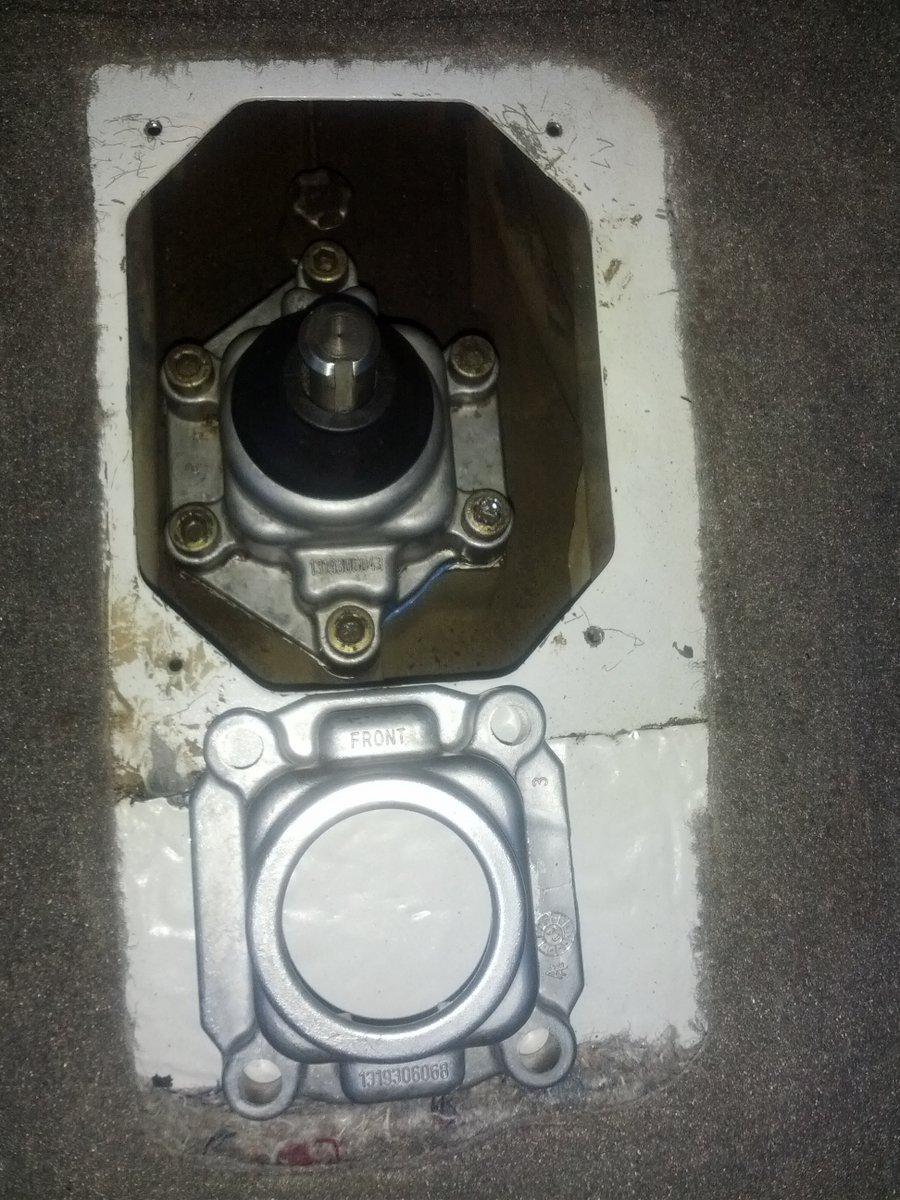

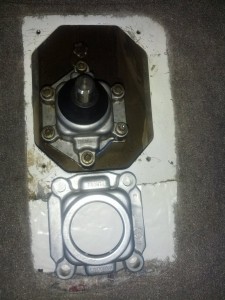

The 2002 (on the transmission) and the 2008 (on the white tunnel) retainer housing side by side.

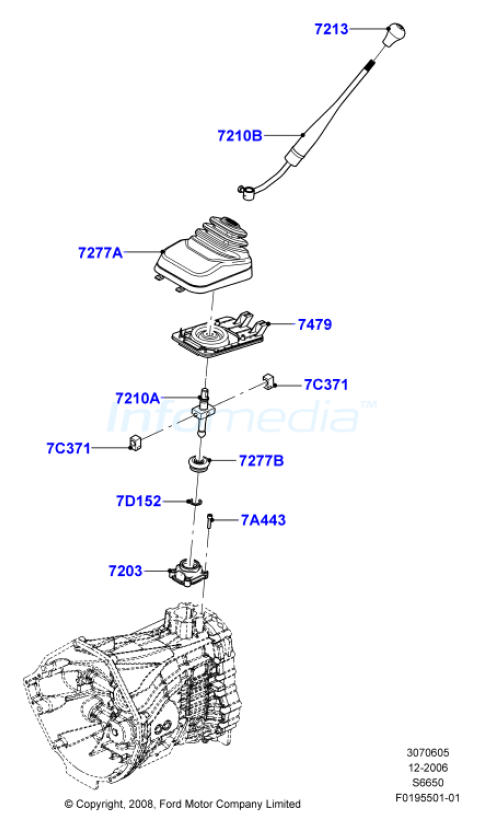

Here the Ford catalogue for the 2008:
parts list:
7C3Z*7277*C
7C3Z*7210*C
7C3Z*7479*A
7C3Z*7277*A
F81Z*7213*AA
7C3Z*7210*E
E7TZ*7C371*A
E7TZ*7D152*A

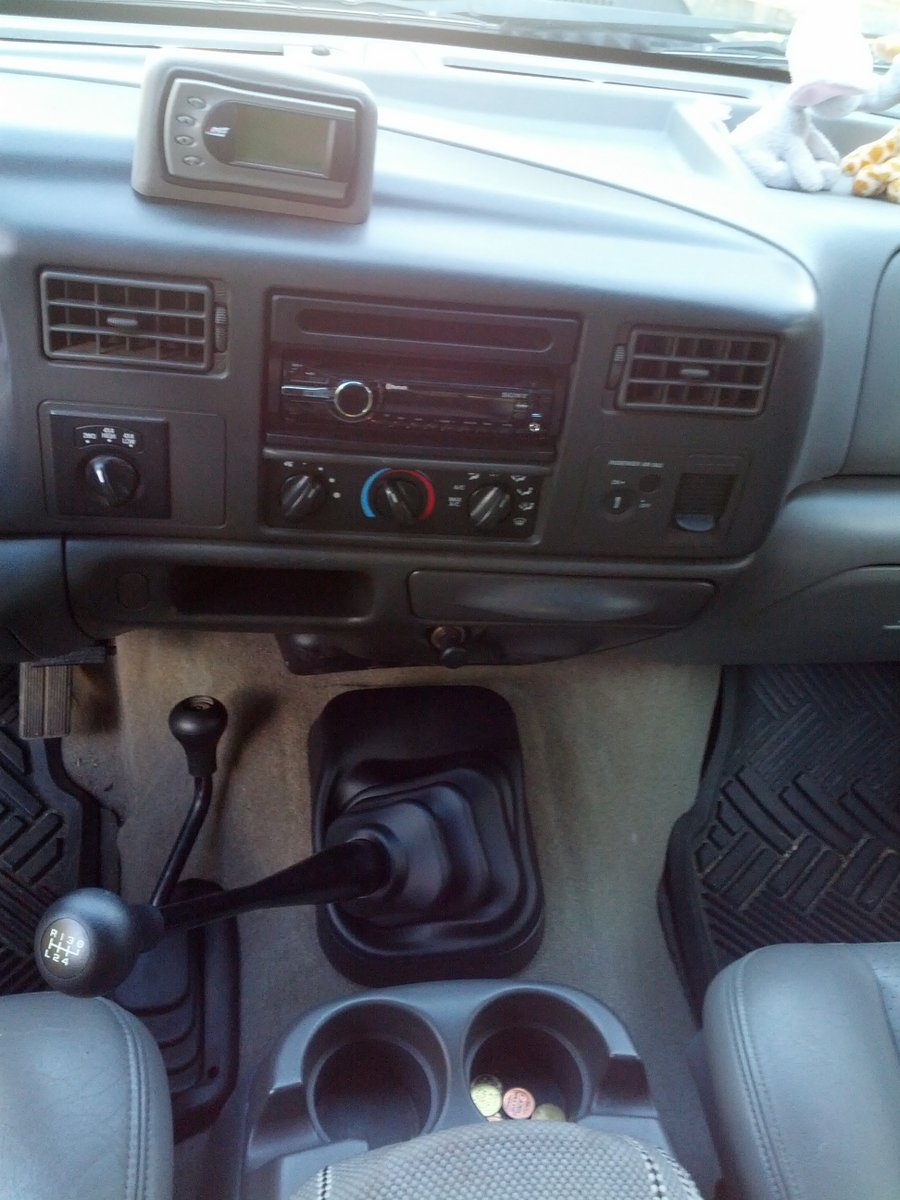

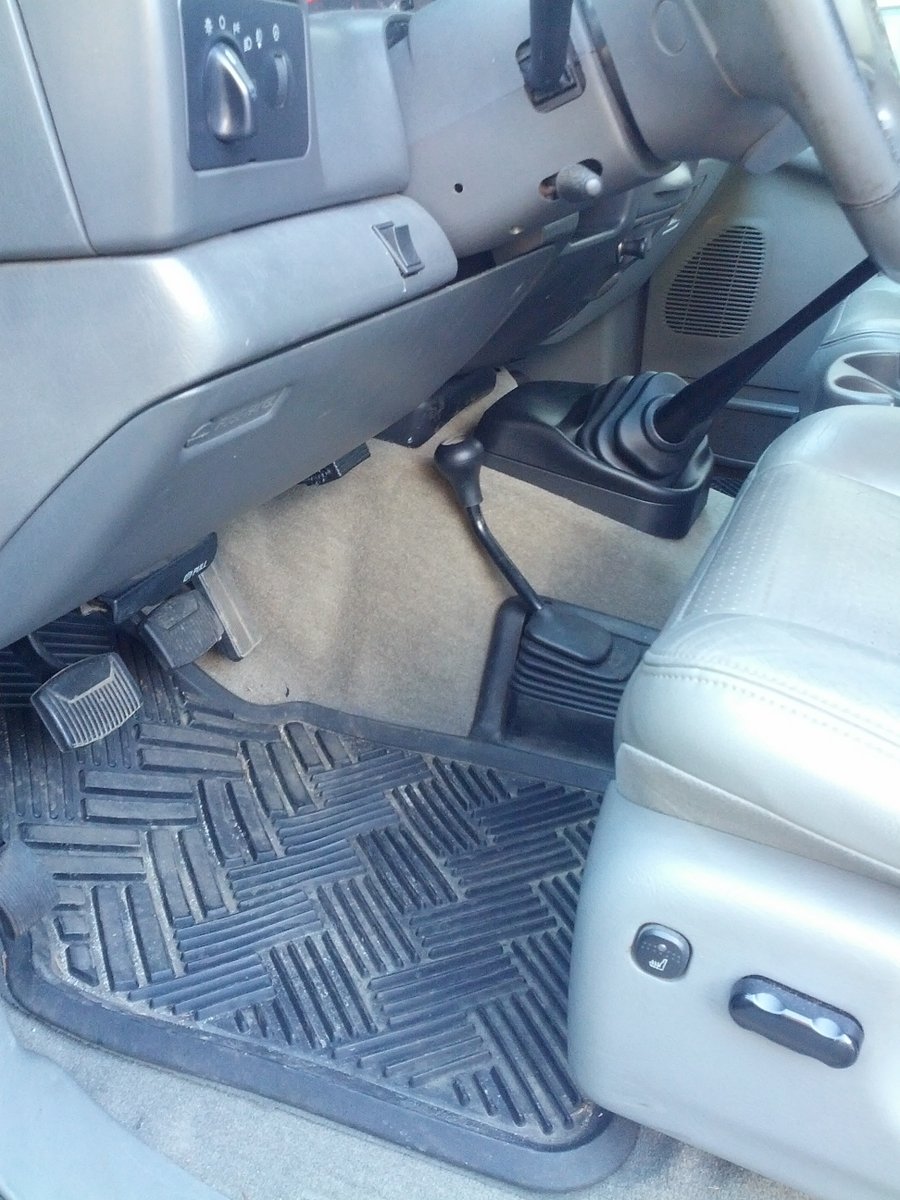

Installed:


A big thanks to Mike R at Autonation Ford. He’s an enormous help for these kinds of projects!
